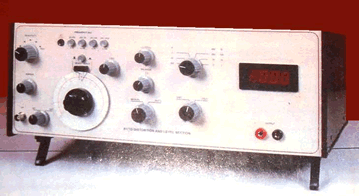

Auto Tuning Distortion Analyzer



Features:

  • Digital Read out for Distortion and Level Measurement
  • Auto And Manual Tuning for Distortion Measurement
  • Frequency Range : 20 Hz to 200 KHz
  • Level Meter Range : 1m V to 300 V
  • Level Meter Response up to 2 MHz

Specifications:

  • Distortion Measurement
  • Distortion Measuring Range :  0.1% to 100% in three ranges.
  • Frequency Range :  20 Hz to 200 KHz
  • Automatic Nulling Range: From 20 Hz to 200 Hz (Manual Null Tuned to 3% of Set Level)
  • From 200Hz to 20KHz (Manual Null tuned to 10% of Set Level)
  • Input Range :150 mV to 40 Vrms (External Attenuator to be used for voltage more than 40V ; up to 250 Vrms)
  • Input Impedance : 1 Mohms.
  • Fundamental Rejection : More than 80 dB
  • Second Harmonic Accuracy : 1 dB Typical
  • Distortion Introduced : 0.05% (Max) By Instrument
  • Automatic Null Accuracy : Within ± 2 dB ; Manual Null

Level Meter:

  • Voltmeter Range : 3 mV to 300 Vrms in 6 ranges
  • Frequency Range : 20 Hz to 2 MHz
  • Basic Accuracy : ± 3% of Reading, ± 1 Digit At 10 KHz.
  • Residual Noise : Less than – 80 dB.
  • Frequency Response : 3mV to 10V 5% upto 100 KHz, 10% upto 2 MHz
  • 30V and 300V ranges 5% upto 100 KHz
  • Output Impedance : 2.2 Kohms (Approx)
  • Input Impedance : 11 Mohms (Approx)
  • Facility for monitoring Provided residuals.

General:

  • Read Out : Digital Panel Meter
  • Power Supply : 230V ± 10% ; 50 Hz
  • Operating Temp : 0 – 400C

Accessories:

  • Banana to Crocodile cable : 1 Pair
  • Instruction Manual : 1 No.
  • Attenuator (Optional)





* Products not listed can be ordered as per request.
* Model number may subject to change without intimation
