  FG 8005B
Function Generator

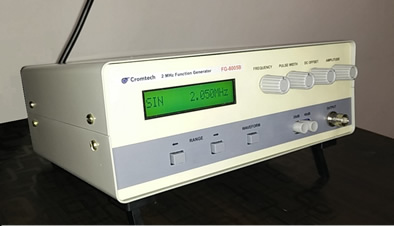

FUNCTION GENERATOR FG8005B (2Hz - 2 MHz)


The Signal Generator Model FG8005B is a low cost instrument capable of providing sine, square, triangle and pulse waveforms from 2 Hz to 2 MHz in six decade ranges. It has a maximum of 20 volts peak to peak signal amplitude (10V p-p into 50 ohms). It includes a variable DC offset which can also help in getting true positive and true negative waveforms.


Specifications

Output Waveforms

Sine, Square, Triangle and Pulse

Frequency Readout

3½digits with direct display in Hz, KHz, or MHz

Output

Socket – BNC
Amplitude – 20 V p-p with 50 ohms impedance

FrequencyRange

2Hz to 2MHz, selected in 6 decade steps. Variable control between steps.
2 Hz to 0.5 MHz for triangle

Accuracy

4% - 2 Hz to 5 Hz, 2% - 5 Hz To 10 Hz,
0.8% - 10 Hz to 100 Hz,
0.1% >100 Hz

DC Offset

±5 V continuously adjustable with peak signal amplitude of ±12.5V at 0 dB, attenuated by step attenuator

Attenuator Switches

0 dB, 20dB, 40dB, 60dB.

Level Flatness

±2%from 2 Hz to 200KHz

Sine  Wave Distortion

0.6% maximum at 20 V p-p
0.3% maximum at 2 V p-p
(Fo = 10 KHz)

Square/Pulse Rise & Fall Time

Less than 70 nsec at full rated Output.

Pulse Duty Cycle  Variation

15% to 85% ( 2 Hz - 200 KHz )
25% to 75% ( >200 KHz )
Minimum pulse width 200 ns

Triangle Linearity Error

0.2%  (Fo = 10 KHz, 5% to 95%)

Power Requirement

230 V AC ± 10%, 50/60 Hz, 5 VA.

Dimensions

215 mm (W) x 85 mm (H) x 205 mm (D).

Weight

1.8 Kg.


PANEL CONTROLS  & FEATURES

1

LCD DISPLAY

16 Character X 1 line display shows frequency of  output signal set by FREQUENCY KNOB (2) and UP RANGE(9) or DOWN RANGE (10) switches. It also displays the output  waveform selected by WAVEFORM SELECTOR (8).

2

FREQUENCY

In conjunction with UP RANGE/FREQUENCY (9) or DOWN RANGE/FREQUENCY (10) switches this knob varies the output  frequency of  the waveforms at  the  50  ohms OUTPUT JACK (6).

3

PULSE WIDTH

This control varies the duty cycle of the selected pulse from 15% to 85%.

4

DC OFFSET

Turns on/off the DC offset voltage applied to the output and controls  the  output  signal  DC  level  with  respect to ground. It is  continuously  variable for ± 5V. Its range is attenuated by the ATTENUATOR (7) switch.

5

AMPLITUDE

It adjusts the amplitude of  the  output signal from less than 10% to 100% of the levels, selected with the ATTENUATOR (7) switch.

6

OUTPUT JACK

Waveforms  selected by  WAVEFORM  SELECTOR (8) switch as   well   as   the  superimposed   DC  offset  voltages  are  available at this jack.

7

ATTENUATOR

This switch adjusts the amplitude of output signal in precise steps of 20 dB. Maximum attenuation obtained is 60 dB.

8

WAVEFORM SELECTOR

Selects either sine, square, triangle or pulse as the output waveform.

9

UP RANGE /   FREQUENCY

In Switch mode increases frequency at digit position set by FREQUENCY  KNOB (2). In Pot mode used  in  conjunction with  FREQUENCY  KNOB  to  select the  desired  output  frequency. Each press of the switch increases the frequency by factor of 10.

10

DOWN RANGE / FREQUENCY

In Switch mode decreases frequency at digit position set by FREQUENCY  KNOB (2). In Pot mode used  in  conjunction with  FREQUENCY  KNOB  to  select the  desired  output  frequency. Each press of the switch decreases the frequency by factor of 10.

11

POWER ON-OFF

Turns on/off the mains supplied to the unit. Located on the back panel
