LCR Meters

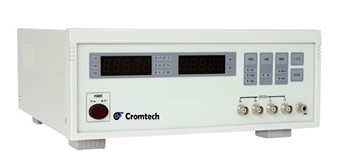

JC2812/ JC2812A/ JC2812B/ JC2817

Characteristic Function:
(1) Upgraded intermediate LCR meter
(2) Reading steadily and display high resolution, and monitor the test level
(3) Optional8 typical test frequency. The highest frequency is 100 KHz
(4) It can be accurate test for a long period time without calibration
(5) Selectable source output impendence: 30Ω, 100Ω
(6) Handler interface, RS-232 interface


Specifications
  JC2812 JC2812A JC2812B JC2817
Test Frequency

100Hz,120Hz,1kHz

100Hz,1kHz,10kHz

100Hz,120Hz,1k/10kHz

100Hz,120Hz,1k/10k/
20k/40k/50kz/100kHz

Test Parameter

L,C,R,Q,D

L,C,R,Q,D

L/Q, C/D, R/Q,
Z/D, Z/Q

L/Q, C/D, R/Q,
Z/D, Z/Q

Test Level

0.3Vrms

0.3Vrms

0.1Vrms,0.3Vrms,
1.0Vrms

0.1Vrms,0.3Vrms,
1.0Vrms

Test Precision

L,C,R:0.25%,Q:0.25%,
D:0.1%( intrinsic error)

L,C,R:0.2%,Q:0.2%,D:0.1%(intrinsic error)

L,C,R:0.05%,Q:0.05%,D:0.03% (intrinsic error)

L,C,R:0.05%,Q:0.05%,D:0.03% (intrinsic error)

Measuring Range

L:0.1μH~9999H

L:0.1μH~9999H

L:0.0001μH~99999H

L:0.0001μH~99999H

C:0.1pF~19999μF

C:0.1pF~19999μF

C:0.001pF~99999μF

C:0.0001pF~99999μF

R:0.1mΩ~99.99MΩ

R:0.1mΩ~99.99MΩ

R/Z:0.0001Ω~ 99999MΩ

R/Z:0.0001Ω~ 99999MΩ

Q:0.01%~999%

Q:0.01%~999%

Q:0.01%~999%

Q:0.01%~999%

D:0.01%~999%

D:0.01%~999%

D:0.01%~999%

D:0.01%~999%



△%:0.01%-99999%

△%:0.01%-99999%



handler inter face

Size 330(W) × 100(H)× 310(D) mm
Weight

5KG

Accessories

Test clamp JC28001 or JC26001, Test cable JC28002 or Kelvin test cable JC26004,
Short calibration tinsel JC28003, power cable

Input Voltage

AC:220V±10%,50Hz±2Hz%


* Products not listed can be ordered as per request.
