Signal / Function Generator

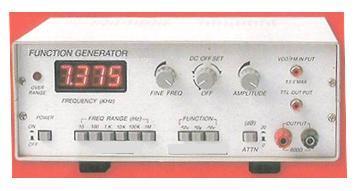

1 MHz FUNCTION GENERATOR FG 3112
Wave Forms Sine, Square, Triangle & TTL output.
Frequency Range 1Hz to 1MHz for all functions in 6 decade steps with calibrated linear variation
  in between steps.
Frequency Counter 4 digit display for output Frequency.
Accuracy With in ± 2% in first 5 ranges & ± 4%.last range.
Output Amplitude 0 – 15Vpp into 50 ohms and 30 Vpp in Open Circuit.
DC Off Set Continuously Variable ±10V into open circuit. Combined signal plus
  offset is limited to 20 Vpp.
Output Impedance 600 ohms (±5%) Option : 50W.
Attenuation 0 to 20db.
Output Coupling  DC.
Sine Wave Distortion  Less than 1% from 10Hz to 100KHz Harmonics more than 30 db down from fundamental for 100KHz to 1MHz.

Amplitude Flatness Sine, Square, Triangle-Ref 10KHz within ±0.5 db from 10Hz to 10KHz
  Sine, Triangle and square wave amplitude match within 1 db @10KHz.
Square Wave Rise time - < 100 ns.  ;   Fall time - < 100 ns.
Duty Cycle  49% to 51%.
Symmetry  NA.
Triangle  < 1%.
Aberrations Within ± 5% of Vpp of the waveform.
Triangle Wav Linearity 0.5%.
VCO Input Facilities remote programming of frequency / Frequency modulation to sweep
  frequency around dial setting,
- Characteristics Sweep frequency ratio : 100:1
  Input Impendence : 1Kohms
  Input level : Min 20mV, Max : ±5V.
TTL Square Wave Rise Time -< 50 ns ;  Fall Time - < 50 ns ;  Amplitude – 5 Vpp (± 3%).
Power 230V ±10%, 50Hz, AC, Single Phase


* Products not listed can be ordered as per request.
