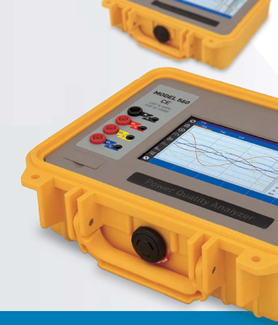

| Tekon 560 Power Quality Analyzer |
| |
 |
|
| Introduction |
| |
|
|
| TEKON560 Series Power Quality Analyzers are handheld instruments that accurately measure, diagnose and analyze electrical power characteristics and parameters of power distribution and communication related systems. By incorporating a 7-inch wide touch screen into its lightweight design, they maximize user convenience, allowing the user to perform power quality logging and analysis. |
 |
|
| |
|
| Features: |
|
| |
|
- Measuring the quality of power and electrical parameters at the same time
- Displaying how to conduct wiring and measurement of touchscreen
- 7" wide LCD making easier measurements and analysis
- Providing touch functions in order for the user to search/archieve menus via intutive UI
- Enabling the user to download, view and analyze stored data, and make up reports
- Providing flexible coil clamp (Rogowski coil) as basic current sensor
- Captures three-phase power quality measurements
- Simultaneously measures active/ reactive/ apparent power, power factor, RMS voltage/ current, phase angle and neutral line current
- Supports a variety of wiring such as single-phase 2-wire, single-phase 3-wire, three phase 3-wire and three-phase 4-wire
- Displays voltage and current waveforms and phase diagram
|
|
|
|
