Viscometer Series

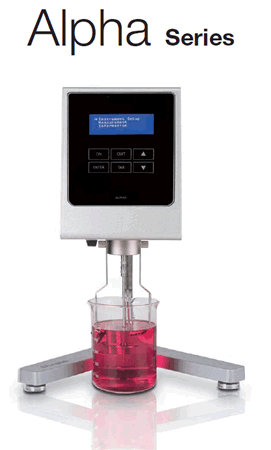

1. Alpha series
Main Features
  • Data displayed
    • Selected speed (r.p.m)
    • Selected spindle (SP)
    • Viscosity reading (cP) [mPa*s]
    • Percentage of full scale (%)
  • Releative and absolute viscosity.
  • Unit converter SI to CGS.
  • AUTO-TEST with sound and visual malfunction alarm
  • AUTO-RANGE function
  • User-enabled calibration.
  • 10 language options.

Standard delivery: The equipment is supplied complete with standard spindles (4 spindles for L model, and 6 spindle for R and H models), viscometer stand and spindle protector.

Spindles
AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.
Code Model Measuring Range (cP) Speeds (RPM) Number of speeds
V100003 Alpha Series L 20 - 2,000,000 0.3 - 100 18
V100002 Alpha Series R 100 - 13,000,000 0.3 - 100 18
V100001 Alpha Series H 200 - 106,000,000 0.3 - 100 18

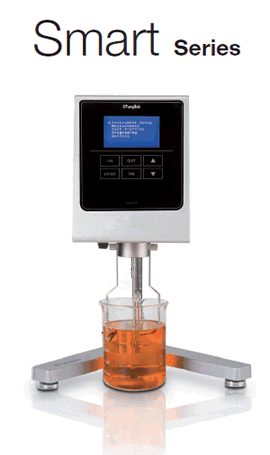

2. Smart Series
Main Features
  • Touch key board 6 keys.
  • Direct readout on a graphic display
  • Data displayed
    • Selected speed (r.p.m)
    • Selected spindle (SP)
    • Viscosity reading (cP) [mPa*s] or cSt
    • Percentage of full scale (%)
    • Sample temperature (°C or °F - optional)
    • Shear Rate, with co-axial spindles (SR)(s-1)
    • Shear Stress, with co-axial spindles (SS)(N/m²)
    • Density (introduced by the user) (g/cm³)
  • Viscosity reading: dynamic viscosity (cP or mPa*s) or kinematics viscosity (cSt).
  • Unit converter SI to CGS.
  • Program features:
    • Time to torque: target torque pre-setting device.
    • Time to stop: targe time pre-setting device.
    • 10 working memories.
  • AUTO-TEST with sound and visual malfunction alarm
  • AUTO-RANGE function
  • Temperature reading by PT100 (optional) calibration
  • 10 language options.
  • Interface: USB
  • Datalogger Software: USB allows data transfer to a PC Excel format.

Standard Delivery: The equipment is supplied complete with standard spindles ( 4 spindles for L model, and 6 spindles for R and H models), viscometer stand and spindle protector, carrying case, USB cable and Datalogger software.



Technical File
  • Precision: ± 1% of full scale
  • Resolution:
    • With low viscosity adapter: 0.01
    • For lower than 10,000 viscosity cP:0.1
    • For viscosity equal to or above 10,000 cP:1
  • Repeatability: 0.2%
  • Thermometer features:
    • Temperature margins: 0°C to +100°C / 32°F to 212°
    • Resolution: 0.1°C / 0.17°F
    • Precision: ±0.1°C
    • Type of probe: PT100
  • Supplied at 100-240 VAC, 50/60Hz
Spindles
  • AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.
Code Model Measuring Range (cP) Speeds (RPM) Number of speeds
V200003 Smart L 20 - 2,000,000 0.3 - 100 18
V200002 Smart R 100 - 13,000,000 0.3 - 100 18
V200001 Smart H 200 - 106,000,000 0.3 - 100 18

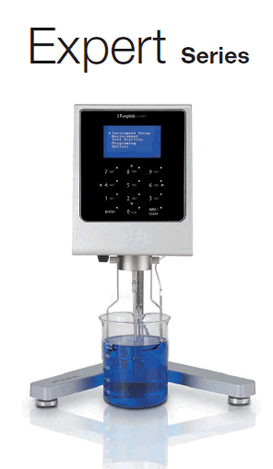

3. Expert Series

Main Features

  • Touch key board 12 keys.
  • Direct readout on a graphic display
  • Data displayed
    • Selected speed (r.p.m)
    • Selected spindle (SP)
    • Viscosity reading (cP) [mPa*s] or cSt
    • Percentage of full scale (%)
    • Sample temperature (°C or °F - optional)
    • Shear Rate, with co-axial spindles (SR)(s-1)
    • Shear Stress, with co-axial spindles (SS)(N/m²)
    • Density (introduced by the user) (g/cm³)
  • Viscosity reading: dynamic viscosity (cP or mPa*s) or kinematics viscosity (cSt).
  • Unit converter SI to CGS.
  • Program features:
    • Time to torque: target torque pre-setting device.
    • Time to stop: targe time pre-setting device.
    • 10 working memories.
    • Customizable Options
    • Programmable
    • Multistep
    • Ramp
  • AUTO-TEST with sound and visual malfunction alarm
  • AUTO-RANGE function
  • Temperature reading by PT100 calibration
  • User-enabled viscosity and temperature calibration.
  • 10 language options.
  • Interface: USB
  • Datalogger Software: USB allows data transfer to a PC Excel format.

Standard Delivery: The equipment is supplied complete with standard spindles ( 4 spindles for L model, and 6 spindles for R and H models), viscometer stand and spindle protector, carrying case, USB cable and Datalogger software.



Technical File
  • Precision: ± 1% of full scale
  • Resolution:
    • With low viscosity adapter: 0.01
    • For lower than 10,000 viscosity cP:0.1
    • For viscosity equal to or above 10,000 cP:1
  • Repeatability: 0.2%
  • Thermometer features:
    • Temperature margins: 0°C to +100°C / 32°F to 212°
    • Resolution: 0.1°C / 0.17°F
    • Precision: ±0.1°C
    • Type of probe: PT100
  • Supplied at 100-240 VAC, 50/60Hz
Spindles
  • AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.
Code Model Measuring Range (cP) Speeds (RPM) Number of speeds
V300003 Expert L 20 - 6,000,000 0.01 - 200 54
V300002 Expert R 100 - 40,000,000 0.01 - 200 54
V300001 Expert H 200 - 106,000,000 0.01 - 200 54

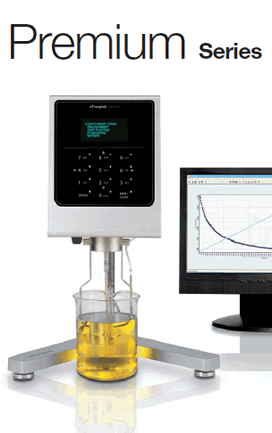

4. Premium Series
Main Features
  • Touch key board 12 keys.
  • Direct readout on a graphic display
  • Data displayed
    • Selected speed (r.p.m)
    • Selected spindle (SP)
    • Viscosity reading (cP) [mPa*s] or cSt
    • Percentage of full scale (%)
    • Sample temperature (°C or °F - optional)
    • Shear Rate, with co-axial spindles (SR)(s-1)
    • Shear Stress, with co-axial spindles (SS)(N/m²)
    • Density (introduced by the user) (g/cm³)
    • Step Program Status
    • Analyze & visual characterisitics (flow curves)
  • Viscosity reading: dynamic viscosity (cP or mPa*s) or kinematics viscosity (cSt).
  • Unit converter SI to CGS.
  • Program features:
    • Time to torque: target torque pre-setting device.
    • Time to stop: targe time pre-setting device.
    • 10 working memories.
    • Customizable Options
    • Programmable
    • Multistep
    • Ramp
  • AUTO-TEST with sound and visual malfunction alarm
  • AUTO-RANGE function
  • Temperature reading by PT100.
  • User-enabled viscosity and temperature calibration.
  • 10 language options.

Standard Delivery: The equipment is supplied complete with standard spindles ( 4 spindles for L model, and 6 spindles for R and H models), viscometer stand and spindle protector, carrying case, USB cable and Datalogger software.

Technical File:
  • Precision: ± 1% of full scale
  • Resolution:
    • With low viscosity adapter: 0.01
    • For lower than 10,000 viscosity cP:0.1
    • For viscosity equal to or above 10,000 cP:1
  • Repeatability: 0.2%
  • Thermometer features:
    • Temperature margins: 0°C to +100°C / 32°F to 212°
    • Resolution: 0.1°C / 0.17°F
    • Precision: ±0.1°C
    • Type of probe: PT100
  • Supplied at 100-240 VAC, 50/60Hz
Spindles:
  • AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.
Code Model Measuring Range (cP) Speeds (RPM) Number of speeds
V400003 Premium L 20 - 6,000,000 0.01 - 250 2600
V400002 Premium R 100 - 40,000,000 0.01 - 250 2600
V400001 Premium H 200 - 106,000,000 0.01 - 250 2600


* Products not listed can be ordered as per request.
