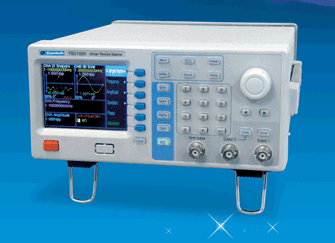

DDS Function Signal Generator
Features
  • 9 function waveform;
  • high resolution:100uHz,8 digital display;
  • PC interface(R232.GPIB);
  • Windows wave edit and download software;
  • 6 types arbitrary wave (32K/C);
  • Large screen back light LCD display menu driven;
  • Frequency sweep (linear, log).FSK. pulse filled,
  • Pulse serial Int FM, Int AM.


Specifications

MODEL

YB3002

YB3003

YB3005

YB3010

YB3015

YB3020

YB3030

YB3040

YB3050

Wave form Sine, rectangular, triple, pulse, rise ramp, fall ramp, random noise, SIN(x)/x, rise log, fall log etc.
Frequency
Sine 1μHz~
2MHz
1μHz~
3MHz
1μHz~
5MHz
1μHz~
10MHz
1μHz~
15MHz
1μHz~
20MHz
1μHz~
30MHz
1μHz~
40MHz
1μHz~
50MHz
Rectangular 1μHz~
2MHz
1μHz~
3MHz
1μHz~
5MHz
1μHz~10MHz
Other wave form 1μHz~1MHz
Max resolution 8 digital or 0.1μHz
Long stability 50ppm
Signal Characteristics
Rectangular rise time ≤20ns
Over shot ≤5%
Rectangular asymmetry(1kHz) <1%
Pulse duty cycle 0.1~99.9%(<10KHz)
1%~99%(10kHz~100kHz)
3%~97%(<1MHz)
Triple, ramp linearity (1kHz) <0.1%
Output A
Amplitude setup 2mVpp~2Vpp(High resistance);
1mVpp~10Vpp(50Ω)
2mVpp~6Vpp(High resistance);
1mVpp~3Vpp(50Ω)
Attenuation error(1kHz) <5%
Frequency response (1Vpp, base:1kHz) <5%
Setup ratio setup (<5Vpp) -100%~100%
Input impedance 50Ω
Output B
Wave form Build-in wave form
Amplitude 200mVpp~2Vpp(High resistance);
100mVpp~10Vpp(600Ω)
Output impedance 600Ω
Frequency Range 0.1Hz~20KHz
Sweep frequency
Type Line or linearity
Direction Positive or negative
Start/End 1Hz~
2MHz
1Hz~
3MHz
1Hz~
5MHz
1Hz~
10MHz
1Hz~
15MHz
1Hz~
20MHz
1Hz~
30MHz
1Hz~
40MHz
1Hz~
50MHz
Time setup range 10ms~40s
FSK, PSK, ASK, BURST
Pulse, interval 10μs~100s
Trig mode Int, Ext. single
Carrier frequency 1Hz~Max. Frequency
Carrier wave form Build-in wave form
Phrase -360~360 degree
Burst pulse number 1~65535
AM
Module wave form Any build-in function wave form
Module Frequency 100mHz~10kHz
Modulation 0%~100%
Source Internal/External
FM
Carrier wave form Any build-in function wave form
Module frequency 100mHz~10kHz
Frequency shift setup range 1Hz~
2MHz
1Hz~
3MHz
1Hz~
5MHz
1Hz~
10MHz
1Hz~
15MHz
1Hz~
20MHz
1Hz~
30MHz
1Hz~
40MHz
Source Internal
Phrase Module
Carrier wave form Sine, Rectangular
Module frequency 100mHz~10kHz
Max. phrase shift 360 degree
Source Internal
Frequency counter
Frequency 1Hz~100MHz
Input voltage > 100mV
Storage Characteristics
Save/Recall 20个
Physical Characteristics
Power supply AC 200V±10%;50Hz±5%
Dimension 95H×245W×340D(mm)
Weight Approx 2kg











* Products not listed can be ordered as per request.
