Autoclave |
|

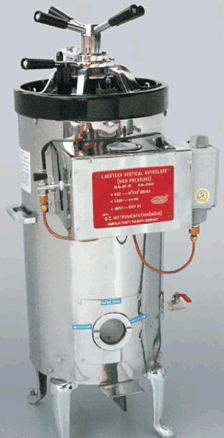

| Autoclave (Vertical) |
| |
Features |
| |
| Supplied with Stainless Steel,
chamber, Stainless Steel Basket &
Stainless Steel lid with wing nut
closing arrangement. Inner & outer
chamber made of Stainless Steel. |
| |
| Specifications |
| Dia x Depth |
Load |
| 250 x 450 mm |
1.5 kW |
| 300 x 500 mm |
2.0 kW |
| 350 x 550 mm |
3.0 kW |
| 400 x 600 mm |
4.0 kW |
| 450 x 600 mm |
4.0 kW |
| 550 x 750 mm |
5.0 kW |
|
 |
| |
| |
| Optional Accessories: |
i) Automatic low-water level
cut off-device.
ii) Pressure control switch.
iii) Radial lock
(for models d, e & f only).
iv) Dressing bins of various size.
v) Water level arrangement. |
| |
| |
| |
| |
| |
| |
| |
|

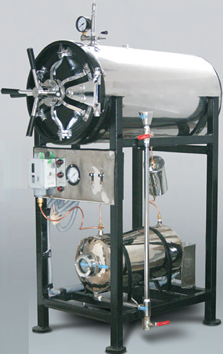

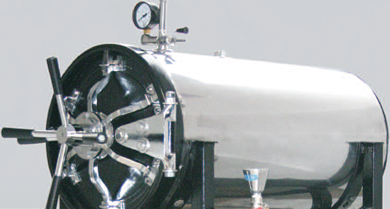

| Autoclave (Horizontal) |
| |
 |
| Features: |
| |
Supplied with S.S. chamber, S.S. Basket & S.S. lid with wing nut closing arrangement. Inner & outer
chamber made of S.S. but presented in a horizontal position and without steam jacket. The outer
body made of mild steel, inner chamber made of stainless steel. |
| |
| Dia x Depth |
Load |
| 350 x 550 mm |
4.0 kW |
| 450 x 600 mm |
6.0 kW |
| 550 x 750 mm |
6.0 kW |
| 400 x 1100 mm |
9.0 kW |
|
| |
| |
| |
| |
|
|
