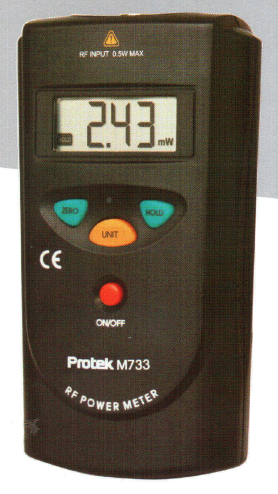

| RF Power Meter |
|
Features
- Lightweight hand - held instrument
- Frequency range : 10MHz to 2.9 GHz
- Hold / Run Modes
- Meter zero, Auto range functions
- 3 ½ Digits LCD
- CW Power 0.1mW to 50mW (limited duration up to 1W)
- Full scale ranges : 1.999mW, 19.99mW, 199.9mW, 1999mW
- Rugged design
- Low Battery detect and display
- Unit display : dBmV, mV, dBm, mW
Applications
- IF and RF system test
- Two-way radio
- RF amplifier test Field Service
- CATV testing and troubleshooting
- Trunk radio
- Wireless consumer product test
- Cellular and PCS phones
- Base station testing and troubleshooting
|
| |
MODEL |
M733 |
| Frequency Range |
10MHz to 2.9GHz |
| RF signal Input power Range |
2mW to 500mW Max |
| Accuracy |
+200C to + 300C
± 10% (mW)@ 10MHz to 1 GHz
± 15% (mW) @ 1GHz to 2.9GHz
± 100C to + 200C + 300C to 400C
± 15% (mW) @ 10MHz to 1GHz
± 20% (mW) @ 1GHz to 2.9GHz |
| Metter Button Function |
Power Switch Button : Meter Power On/Off
Zero Button : Meter Value Zero Point Function
Hold Button : Meter Value Holding Function
Unit Button : Unit section (mW, dBm, mV & dBmV |
| Extra Function |
Auto-scale Function
‘Lo BAT Message Output Function (Low Battery)
‘HP; Message Output Function (High Power Input)
LPI Message Output Function (Low Power Input) |
| LCD Type |
Mono, FSTN, LCD |
| Input Connection |
N-type Female , 50 Ohms Return Loss <-18dBRL
N-type to SVA Female Adaptor (Option) |
| Battery |
6F22UT(006PUT) DC + 9V Battery x 2 Pcs |
| Operating Temperature |
+ 100C to + 400C |
| Operating Humidity |
35RH to 85RH (RF Relative Humidity) |
| Storage Temperature |
-200C to 700C |
| Dimension |
89mm(W) x 160 mm(H)x 45.7 (mm (D) |
| Weight |
Max 900g (2 pounds) |
|
| |
| |
| |
| |
|
