Conductivity Meter |
 |
| TDS Conductivity Meter CL-210 |
| Range |
| Conductivity |
2 µs to 200 mS with 0.1 cell constant and 20 µs to 200 mS with unity cell constant, in 5 decade range |
| TDS |
2 PPM to 2 PPT with 0.1 cell constant and 20 PPM to 200 PPT with unity cell constant, in 5 Decade Range |
| Temperature |
0 °C to 100 °C |
| Resolution |
| Conductivity |
0.01 in lowest range with 0.1 cell constant |
| TDS |
0.01 PPM with 0.1 cell constant |
| Temperature |
1 °C |
| Accuracy |
| Conductivity / TDS |
± 1% of FS, ± 1 Count |
| Temperature |
± 1 °C |
| Cell Compensation |
| 0.1 Conductivity Cell |
± 1% of FS, ± 1 Count |
| 1 Conductivity Cell |
± 1 °C |
| TDS Factor |
0.2 to 1.00 |
| Conductivity Temp Co. range |
0 to 3.0% per °C |
| Cond. Compensation Temp range |
0 to 55 °C |
| Power requirement |
230V +10%, 50 Hz |
| Display |
2½ digit Digital Panel Meter |
|
| |

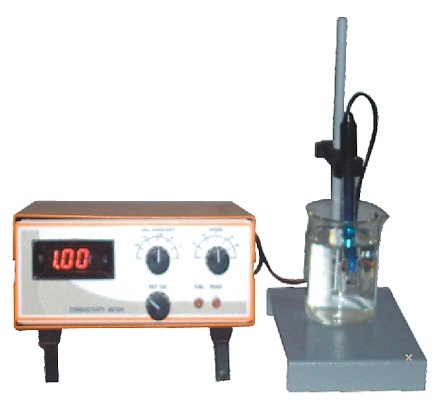

| Conductivity Meter CI-220 |
| Conductivity Range |
0 to 200m MHO or mS |
| Measuring Accuracy |
± 1 % of FS in all the ranges, ± 1 count |
| Display |
2½ digit Digital Panel Meter |
| Conductivity cell |
Appox. 1.0 cell constant |
| Cell constant |
0.9 to 1.1 compensation |
|
| |
| Conductivity Meter CL-250 |
| Conductivity Range |
0.1 µ MHO or µS to 100m MHO or mS |
| Measuring Accuracy |
± 1 % of FS, ± 1 count |
| Display |
20 x 4 Digital LCD |
| Conductivity cell |
0.1 CC and 1.0 CC |
| Cell constant |
Acceptable from 0.1 to 5.0 |
| Temperature |
0 - 100 °C with PT 100 Sensor/ manual |
| Power requirement |
230V +10%, 50 Hz |
|
| |
| TDS Conductivity Meter CL-280 |
| Range |
| Conductivity |
0.1 µs to 100 mS |
| TDS |
0.1 PPM to 200 PPT |
| Temperature |
0 °C to 99.9 °C |
| Resolution |
| Conductivity |
0.01 µs |
| TDS |
0.01 PPM |
| Accuracy |
| Conductivity / TDS |
± 1% of FS, ± 1 Count |
| Temperature |
± 1 °C |
| TDS Factor |
0.20 to 1.00 |
| Conductivity Temp Co. range |
0 to 3.0% per °C |
| Display |
20 x 4 LCD |
|
