PH Meter |
 |
| PH Meter CL-110 |
| PH Range |
0 - 14 PH |
| MV Range |
0 ± 1999 MV |
| Resolution |
0.01 PH in PH range; 1 MV in MV range |
| Repeatability |
0.01 PH 1 Digit; 1 MV 1 Digit |
| Standarization Range |
Min. 2 PH |
| Temp. Compensation |
0 - 100° C |
| Display |
3½ Digits LED |
| Power |
230V 10%, 50 Hz |
|
| |
| PH Meter CL-120 |
| PH Range |
0 - 14 PH |
| MV Range |
0 ± 1999 MV |
| Resolution |
0.01 PH in PH range; 1 MV in MV range |
| Repeatability |
0.01 PH 1 Digit; 1 MV 1 Digit |
| Standarization Range |
Min. 2 PH |
| Temp. Compensation |
0 - 100° C Manual and Automatic Compensation with Temp Probe (PT 100) |
| Display |
3½ Digits LED |
| Power |
230V 10%, 50 Hz |
|
| |
| PH Meter CL-180 |
| PH Range |
0 - 14 PH |
| MV Range |
0 ± 1999 MV, ±1 MV |
| Resolution |
0.01 PH in PH range; 0.1 MV in MV range |
| Repeatability |
0.01 PH 1 Digit; 1 MV 1 Digit |
| Standarization Range |
3 Point (7.00 PH, 4.02 PH, 9.20 PH) |
| Temp. Compensation |
0 - 100° C Manual and Automatic Compensation with Temp Probe (PT 100) |
| Display |
20 x 4 Alpha Numeric LCD |
| Key Board |
4 Key Operation |
| Power |
230V 10%, 50 Hz |
|
| |
| PH Meter CL-181 |
| PH Range |
0 - 14.00 PH |
| MV Range |
0 ± 1999.9, ±1 MV |
| Resolution |
0.01 PH in PH range; 0.1 MV in MV range |
| Repeatability |
0.01 PH 1 Digit; 1 MV 1 Digit |
| Standarization Range |
5 Point (7.00 PH, 4.02 PH, 1.68 PH, 9.20 PH, 12.20 PH) |
| Temp. Compensation |
0 - 100° C Manual and Automatic Compensation with Temp Probe (PT 100) |
| Display |
20 x 4 Alpha Numeric LCD |
| Key Board |
4 Key Operation |
| Power |
230V 10%, 50 Hz |
|
| |
| PH / ION Meter CL-190 |
| PH Range / Resolution |
0 - 14.00 PH / 0.001 PH |
| MV Range / Resolution |
0 ± 1999.9 / ± 0.1 MV |
| Concentration |
10e-1M to 10e-6M, 0.01 PPM to 10000 PPM |
| Accuracy |
± 0.005 PH, ± 0.5 MV, ± 1% of Conc. Reading |
| Standarization Range |
2 - 5 Point |
| Temp. Compensation |
0 - 99.9° C |
| Display |
20 x 2 Alpha Numeric LCD |
| Inputs |
2 Channel for PH & ION, 1 for Temperature |
| Printer port |
80 Column DOT Matrix |
|
| |
| |

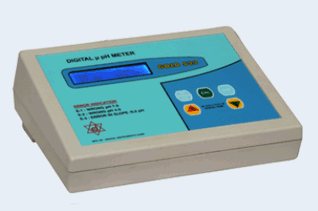

| Microcontroller Based pH Gold 533 |
| DIC µ pH meter GOLD 533 is a highly precision instrument using latest art of microprocessor technology. It displays three functional readings consfontlyona 16 x 12 LC display screen i.e. Temperature. pH & millivolts on selection. It has the focility for Auto femp.compensation as well as manually using keys. In mvs mode the instrument can be used for redox potential measurement |
| |
| Automatiic standardization using buffers ond keys is made by selecting the 7.00, 4.00 & 9.2 pH value |
| |
| Buffers /Electrode slope errors are indicated on screen. Optional printer interfacing is available for pH & temp |
| The instrument is housed in a very compact abs plastic cabinet with attractive finish & light in weight for handling. pH and temp. senor if open or contact problem is displayed as "Open". |
| |
| Standard Accessories |
| Combination pH electrode (gel filled unbreakable type), Temperature probe, Stand with clamp, Dust cover, Operation Manual |
| |
Specifications
Parameter |
pH Mode |
mV Mode |
| Range |
0.00 to 14.00 pH
|
0 to ±1999 mV |
| Resolution |
0.01 pH |
± 1 mV |
| Accuracy |
0.01 pH ± 1 digit |
1mV ± 1 digit |
| Input Impedance |
1012 ohms |
|
| Buffer Calibration |
7.00 pH, 4.00 pH ond 9.20 pH. |
| Temperoture Ronge |
0-100°c with continuous digital display |
| Resolution |
1.0° c |
| Temp. Compensation |
Automatic & Manual |
| Display |
16 Charater X 2 Lines Liquied Crystal Display |
| Polarity & Decimal |
Automotic |
| Supply |
220V AC ± 10%, 50Hz |
| Dimenssion |
180mm x 130mm |
| Weight |
750 gm. in Plastic Cabinet |
| Optional |
Printer interface (extra charges) |
|
 |
| |
| |
| |
| |
