Visible Spectro Photometer |
| |
|
 |
| Double Beam Visible Spectro PhotoMeter |
Single Beam Visible Spectro Photometer |

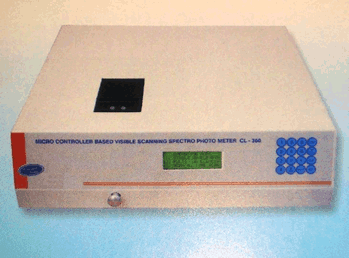

| Spectro Photometer CL-360 |
| Wave length |
| Range |
340 to 990 nm |
| Wave length resolution |
1.0 nm |
| Accuracy |
± 1 nm |
| Read out |
20 x 2 LCD |
| Bandwidth |
5.0 nm |
| Photometric |
| Range |
-0.3 to 2.000 Abs |
| Accuracy |
+0.005 Abs at 1.0A |
| Grating |
600 lines /mm |
| Source |
Tungsten Halogen Lamp 12V, 50W |
| Detector |
Silicon Photo diode |
| Measuring mode |
%T, ABS, Conc, Scan, Time Scan |
| Concentration range |
0 to 9999 with floating decimal pt. |
| Sample holder |
2 position manual cuvetter holder |
| Printer port |
Dot matrix compatible |
| Optional |
RS232 Software |
| |
|
|
 |
| |
| Spectrophoto Meter CL-361 |
| Wave length |
| Range |
340 to 990 nm |
| Wave length resolution |
1.0 nm |
| Accuracy |
± 1 nm |
| Read out |
20 x 2 LCD |
| Bandwidth |
5.0 nm |
| Photometric |
| Range |
-0.3 to 2.000 Abs |
| Accuracy |
+0.005 Abs at 1.0A |
| Grating |
600 lines /mm |
| Source |
Tungsten Halogen Lamp 12V, 50W |
| Detector |
Silicon Photo diode |
| Measuring mode |
%T, ABS, Conc, Scan, Time Scan |
| Concentration range |
0 to 9999 with floating decimal pt. |
| Sample holder |
4 position Auto cuvetter holder |
| Printer port |
Dot matrix compatible |
| Optional |
RS232 Software |
| |
|
|
 |
| |
|
